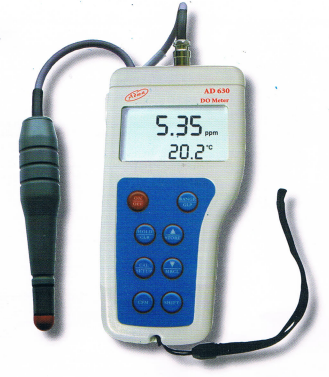

AD630 Dissolved Oxygen and Temperature Waterproof Meter with Galvanic Probe

AD630 Dissolved Oxygen and Temperature Waterproof Meter with Galvanic Probe

Category: Tags: , , , ,

Description

AD630 is a heavy – duty portable waterproof meter for DO (Dissolved Oxygen) and temperature measurements, designed to provide laboratory results and accuracy even under harsh industrial conditions.

Main features include:

  • Dissolved Oxygen readings displayed in ppm or % saturation units
  • Dissolved Oxygen calibration at 1 or 2 standard points (0 and 100%) or at 1 custom point (>20%)
  • Galvanic Dissolved Oxygen probe with built – in temperature sensor
  • Automatic temperature compensation
  • Log – on – demand
  • Set up mode for setting altitude and salinity compensation factors, temperature measure unit (Celsius) or (Fahrenheit) serial communication parameters, data and time, auto – off.

Instrument ID code:

  • HOLD feature to freeze stable readings on the LCD
  • GLP feature to view last calibration data
  • PC interface via RS232 port

Galvanic probe: Unlike polarographic probes, Galvanic DO probes do not require any conditioning time when the unit is switched on, saving time when many measurements are required.

AD630 offers high performance at an affordable price!

AD630 supplied with:

  • User manual
  • 1.5 V AA alkaline battery
AD8001/3 Galvanic DO probe with built – in temperature sensor, DIN connector and 3m cable AD8001A/P Spare membrane with O-ring (5pcs)

AD9072S electrolyte solution for DO galvanic probe in 30ml bottle AD9551 RS232 serial communication cable


RANGE  0.00 to 45.00ppmO2

0.0 to 300.0% saturation

0.0 to 50.0 Celsius / 32.0 to 122.0 Fahrenheit
RESOLUTION  0.01ppm / 0.1%

0.1 Celsius / 0.1 Fahrenheit
ACCURACY  +- 1.5% f.s. (DO)

+- 0.5 Celsius / +- 1.0 Fahrenheit
DO CALIBRATION  Automatic, at 1 or 2 standard points ( 0 and 100% ) or 1 custom point ( > 20%)
TEMPERATURE CALIBRATION  User offset adjustment
TEMPERATURE COMPENSATION  Automatic from 0 to 50 Celsius
ALTITUDE COMPENSATION  0 to 4000m (resolution 100m)
SALINITY COMPENSATION  0.0 to 50.0 G/L (resolution 0.1G/l)
LOG – ON – DEMAND  Up to 100 samples
PC INTERFACE  RS232 port
PROBE ( INCLUDED ) AD8001/3  Galvanic DO probe with built – in temperature sensor, DIN connector and 3 m cable
ENVIRONMENT  0 to 50 Celsius (32 to 122 Fahrenheit )

RH max. 100% non – condensing
POWER SUPPLY  4 x 1.5 V AA, alkaline battery
BATTERY LIFE  Approx. 200 hours of continuous use
AUTO SHUTT – OFF  User selectable : 5 minutes or disable
DIMENSIONS  188 x 96 x 70 mm
WEIGHT  460 gram
