Description

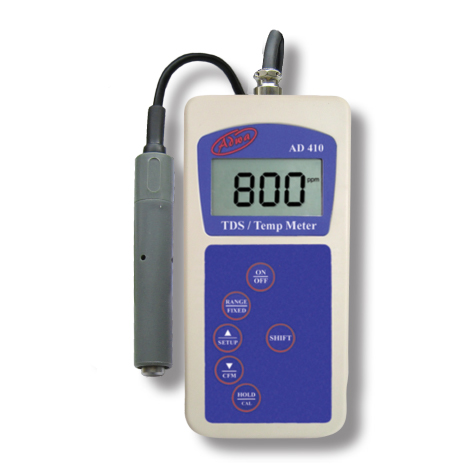

Model: AD410
AD410 are portable microprocessor – based instruments for measuring EC or TDS and temperature.
The auto ranging feature of the EC and TDS readings automatically (ATC) or manually (MTC). The temperature compensation feature can also be disabled to measure actual conductivity or TDS.
The temperature coefficient is user selectable. The instruments also feature a measurement stability indicator.
AD410 supplied complete with:
- instruction manual
- batteries (4 x 1.5V AA alkaline)
 |
 |
| AD76309 4 ring stainless steel conductivity / TDS probe with 1 m cable | AD70032P 1382 ppm calibration solution, 20ml sachet in box of 25 pcs |
| RANGE | EC / TDS | 9.99 / 99.9 / 999uS / cm
9.99 / 99.9mS / cm |
| Temperature | 9.9 to 120.0 Celsius | |
| RESOLUTION | EC / TDS | 0.01 / 0.1 / 1ppm
0.01 / 0.1ppt |
| Temperature | 0.1 Celsius | |
| ACCURACY | EC / TDS | +- 1% f.s. |
| Temperature | +- 0.5 Celsius | |
| EC / TDS CALIBRATION | Offset: 0.0uS / cm;
Slope: 1 point with 4 memorized Standards (800, 1382ppm; 6.44, 40.0ppt) or one custom value |
|
| TEMPERATURE COMPENSATION | Automatic or manual
-9.9 to 120.0 Celsius |
|
| TEMPERATURE | Selectable Coefficient from 0.00 to 6.00% / Celsius | |
| REFERENCE TEMPERATURE | Selectable at 20.0 to 25.0 Celsius |
