Description
Model: AD330 – AD332

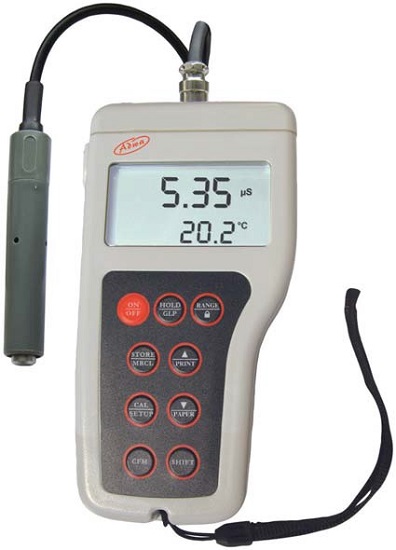

AD330 and AD332 are waterproof portable meters that read TDS and Conductivity in 5 ranges and temperature.
The auto ranging feature of the EC and TDS ranges automatically sets the instrument to scale with the highest resolution. Measurements are compensated for temperature effect automatically (ATC) or manually (MTC). It is also possible to disable the temperature compensation feature to measure the actual conductivity.
The temperature coefficient is user selectable. These instruments also features a measurement stability indicator, GLP capability and a user selectable ID code to uniquely identify the instrument.
Moreover, AD332 includes PC interface and printing function. Connect the meter to an external serial printer with the following printer specifications:
- at least 16 characters / line
- baud rate 9600
- 9 – pin RS232 input
AD330 and AD332 are supplied with:
- User manual
- 1.5V AA alkaline battery (4pcs)
 |
 |
|
| AD76309 4 ring stainless steel conductivity / TDS probe with built – in temperature sensor | AD70031P: 1413us/cm calibration solution, 20ml sachet in box of 25pcs
AD70030P: 12.88mS/cm calibration solution, 20ml sachet in box of 25pcs |
AD9551 RS232 serial communication cable ( only for AD332 ) |
| RANGE | 0.00 to 19.99uS/cm / 0.00 to 10.00ppm
0.0 to 199.9uS/cm / 0.0 to 100.0ppm 0 to 1999uS/cm / 0 to 1000ppm 0.00 to 19.99mS/cm / 0.00 to 10.00 ppt 0.0 to 199.9mS/cm / 0.0 to 100.0ppt -9.9 to 120.0°C |
| RESOLUTION | 0.01 / 0.1 / 1uS/cm ; ppm
0.01 / 0.1 mS/cm ; ppt 0.1 °C |
| ACCURACY | +- 1% f.s.
+- 0.5 °C |
| EC CALIBRATION | Offset 0.0 uS/cm
Slope: 1 point with 6 memorized standards (84.0, 1413uS/cm ; 5.00, 12.88, 80.0, 111.8mS/cm) |
| TEMPERATURE CALIBRATION | User offset adjustment +- 1°C |
| TEMPERATURE | ATC / MTC from -9.9 to 120 °C |
| TEMPERATURE COEFFICIENT | 0.0 to 10.0%/°C |
| REFERENCE TEMPERATURE | Selectable from 15.0 – 30.0 °C |
| TDS FACTOR | 0.4 to 1.0 |
| PROBE | 4 ring EC probe (K=1) with built – in NTC 10K temperature sensor |
| MEMORY | 250 samples on demand with time stamp ( only AD332 ) |
| GLP | Yes with time stamp |
| PRINTER | External through RS232 ( only AD332 ) |
| HOLD FUNCTION | Yes (auto) |
| LOW BATTERY INDICATION | Yes |
| AUTO SHUTT – OFF | Yes |
| POWER SUPPLY | 4 x 1.5V AA Batteries |
| PC INTERFACE | RS232 for PC software and External Printer ( only AD332 ) |
