Description

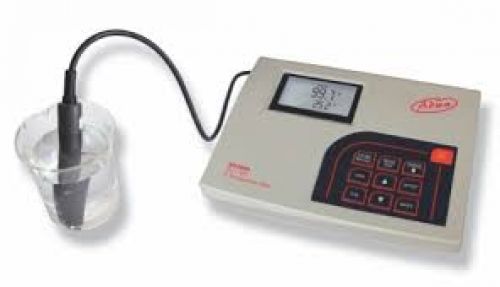

Model: AD3000
AD3000 is a microprocessor-based conductivity, TDS and temperature meter. The auto ranging feature of the EC and TDS ranges automatically sets the instrument to the scale with the highest resolution. Measurements are compensated for temperature effect automatically (ATC) or manually (MTC) with the conductivity probe with built-in temperature sensor. It is also possible to disable the temperature compensation and measure the actual conductivity. The temperature coefficient is user selectable. The instruments is equipped with a stability indicator to indicate when measurement is to be recorded.
AD3000 includes GLP capability. In addition, the meter allows the user to enter an ID code to uniquely identify the instruments.
AD3000 is supplied in a complete set with the following:
- User manual
 |
 |
 |
| AD76309 4 ring stainless steel conductivity / TDS probe with built-in temperature sensor and 1 m cable | 12V DC power adapter | AD70031P: 1413us/cm calibration solution, 20ml sachet in box of 25pcs
AD70030P: 12.88mS/cm calibration solution, 20ml sachet in box of 25pcs |
| RANGE | 0.00 to 19.99uS/cm ; 0.00 to 9.99ppm
20.0 to 199.9uS/cm ; 10.0 to 99.9ppm 200 to 1999uS/cm ; 100 to 999ppm 2.00 to 19.99mS/cm ; 1.00 to 9.99ppt 20.0 to 199.9mS/cm ; 10.0 to 99.9ppt -9.9 to 120.0Celsius |
| RESOLUTION | 0.01, 0.1, 1uS/cm ; ppm
0.01, 0.1mS/cm ; ppt 0.1Celsius |
| ACCURACY (@20Celsius / 68Fahrenheit) | ± 1%f.s. (EC/TDS) (@20Celsius /68Fahrenheit)
± 0.5Celsius |
| EC CALIBRATION | Offset at 0.00uS/cm ; Slope at 1 point with 6 memorized values (84.0, 1413uS/cm ; 5.00, 12.88, 80.0, 111.8mS/cm) or with custom value |
