Description
Model: AD1030 – AD1040 – AD1200
AD1030, AD1040 and AD1200 are professional bench meters for pH, ORP (Oxidation Reduction Potential), ISE ( ONLY AD1200 ) and temperature measurements. Relative mV readings are also provided.
Main features include:
- Up to three – point calibration with seven memorized buffers and two custom buffers
- Calibration time – out alarm
- pH calibration using buffers with 0.001 resolution
- pH readings with manual or automatic temperature compensation
- Up to 50 samples for log – on – demand ( not for AD 1030 )
- Two selectable alarm limits
- HOLD feature to freeze the stable readings on the LCD
- GLP feature ( not for AD1030 ) to view last calibration data for pH, ISE and relative mV ranges
AD 1030, AD 1040 and AD 1200 are supplied complete with:
- User manual
 |
 |
 |

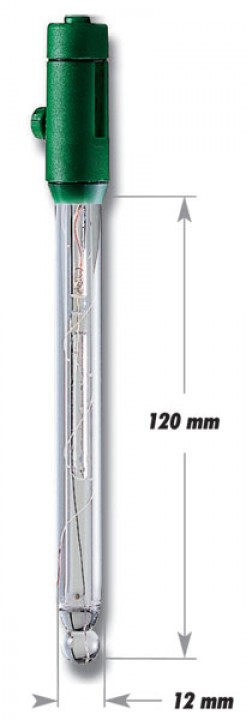

| AD 1131B refillable glass body pH electrode with BNC connector and 1 m cable | AD7662 stainless steel temperature probe with 1 m cable | AD9315 electrode holder for bench meters |
 |
 |
|
| AD70004P: pH 4.01
AD70007P: pH 7.01 calibration solutions in 20mls sachets in box of 25 pcs. |
12 Vdc powder adapter |
| RANGE | pH | – 2.00 to 16.00 pH / +- 2.000 to 16.000pH |
| ORP | +- 2000mV | |
| ISE | 0.001 to 19999 ppm (AD1200 ONLY) | |
| Temperature | -20.0 TO 120.0Celsius (-4.0 to 248Fahrenheit) | |
| RESOLUTION | pH | 0.01pH / 0.001pH |
| ORP | 0.1mV (+- 999.9mV) / 1mV (outside)
0.001ppm (0.001 to 9.999) 0.01ppm (10.00 to 99.99) 0.1ppm (100.0 to 999.9) 0.1ppm (100.0 to 999.9) 1ppm (1000 to 19999) (AD1020 ONLY) |
|
| Temperature | 0.1Celsius (0.1Fahrenheit) | |
| ACCURACY (@20Celsius / 68Fahrenheit) | pH | +- 0.01pH / +- 0.002pH |
| ORP | +- 0.2mV up to +- 699.9mV
+- 0.5mV up to +- 999.9mV +- 2mV outside |
|
| ISE | +- 0.5% f.s. ISE (AD1200 ONLY) | |
| Temperature | +- 0.4Celsius (+- 7Fahrenheit) (EXCLUDING PROBE ERROR) | |
| pH CALIBRATION | Up to 3 point calibration, with 2 custom and 7 standard buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) | |
| ISE CALIBRATION | Up to 2 point calibration (AD1020 ONLY)
5 standard solutions available (0.1, 1, 10, 100, 1000ppm) |
